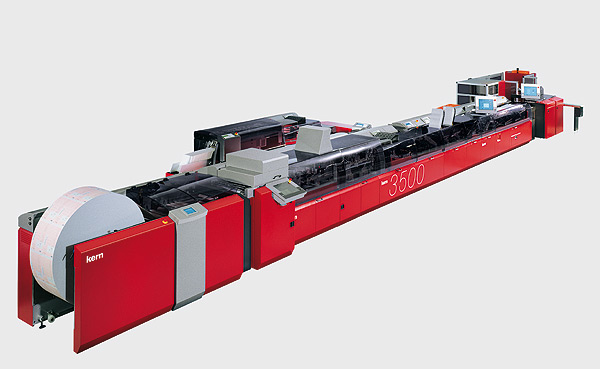

Kern 3500

Its unique design and high speed capabilities mean the Kern 3500 Inserting System can process pre-cut single sheets, as well as continuous forms from fanfold stacks or rolls, more efficiently than ever before. The Kern 3500 Inserting System utilises productivity-enhancing systems such as Kern’s mail traying and trend-setting software suite mailFactory, for a truly impressive total solution.

The Kern 3500 Inserting System is constructed using well-established and proven Kern components. In order to adapt to the widest variety of mailroom environments, the system’s speed is continuously variable. When a job is started, the processing speed is automatically adapted to the application being run. When the system is geared to highest productivity it is capable of handling up to 22,000 insertions per hour.

Secure and modular
Thanks to the Kern 3500 Inserting Systems’s modular construction, future upgrades to the system and integration of new or different hardware and software features are always possible. Kern’s proven reading systems and comprehensive paper-flow monitoring ensure that document integrity is maintained throughout processing.

With high-performance inserting system, it is the input and output components that determine how economical, productive and reliable the system is as a whole. Kern’s enclosure feeding modules can handle a wide variety of inserts and document groups, ensuring a constant and reliable flow of mailpieces which speaks for itself.

User friendly
A variety of enhancements and design features enable an operator to programme the Kern 3500 Inserting System quickly and easily for a wide range of applications. The system’s straight linear design contributes to its user friendliness and ease of paper handling. Rapid changeover of the envelope size setting from C6 to C5 is a key design feature. All the Kern 3500 Inserting Systems’s components allow easy access and are modular replaceable.

Manufacturer: Kern with Pinless input Modell: K3500 Clicks: – Configuration: 1 Channel continuous with 6 enclosures Env. size: C5/6, DL and C5 Insert thickness: 2.5 mm Speed: 22.000 p/hr 1. Channel: 995 cutter, 945 slitter merger Pinless

Reading: 2D Datamatrix Stations: 6, ZSEG and 2x ZSMS Other: GUF, 1 Divert and vertical stacking conveyor Options: VSK and GUF Voltage: 3 phase Frequency: 50 Hz. Service contract: Yes, on-site technician First install.: 2004 Decommissioning by: Current Status: In production Availability: Direct Price in Euro’s: On request

KERN 3500 1Characteristics
Extremely high performance
Cycling speed
Up to 22’000 envelopes/h
Production volume
Very large
Number of input channels
Up to 12
Envelope dimension
C6 to B5

Packing thickness
Max. 6 mm
